HUD (Head-Up Display）

Product Overview

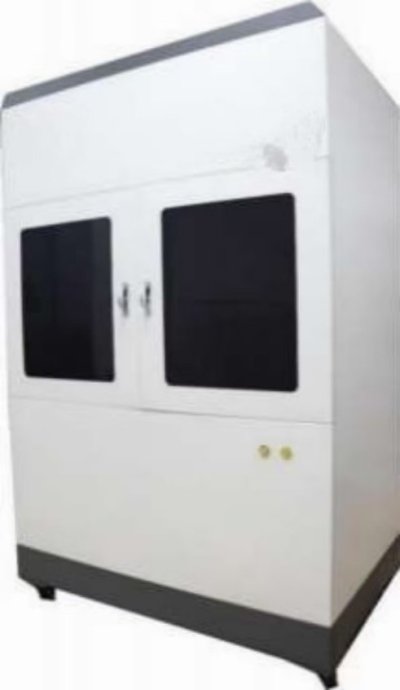

Freeform optical components are used in intelligent vehicle display, AR display, mobile phone lens, laser display, lighting, lithography and other frontier fields, freeform surface 3D surface detector, can non-contact measurement of 3D surface data of optical mirror elements, carry out 3D contour analysis and 3D error comparison, and generate a measurement report containing a number of surface error indicators

Basic Information

Application direction

Freeform mirrors, curved cover glass, precision molds, glass panels, lenses, microlens arrays, wafers, etc

Technical characteristics

Advantage

• Non-contact, full-aperture measurement of the surface of a variety of freeform optics

• Simple, accurate, fast and repeatable measurement without the need for powder coating on the surface

• Automatically complete the data comparison and analysis error, and improve the 3D analysis function

Measurement function

• 3D surface data measurement

• Reverse analysis of the surface shape

• Evaluation of the accuracy of the surface profile
